96-02 3rd Gen 4Runner Long Travel Bypass Shock Hoops

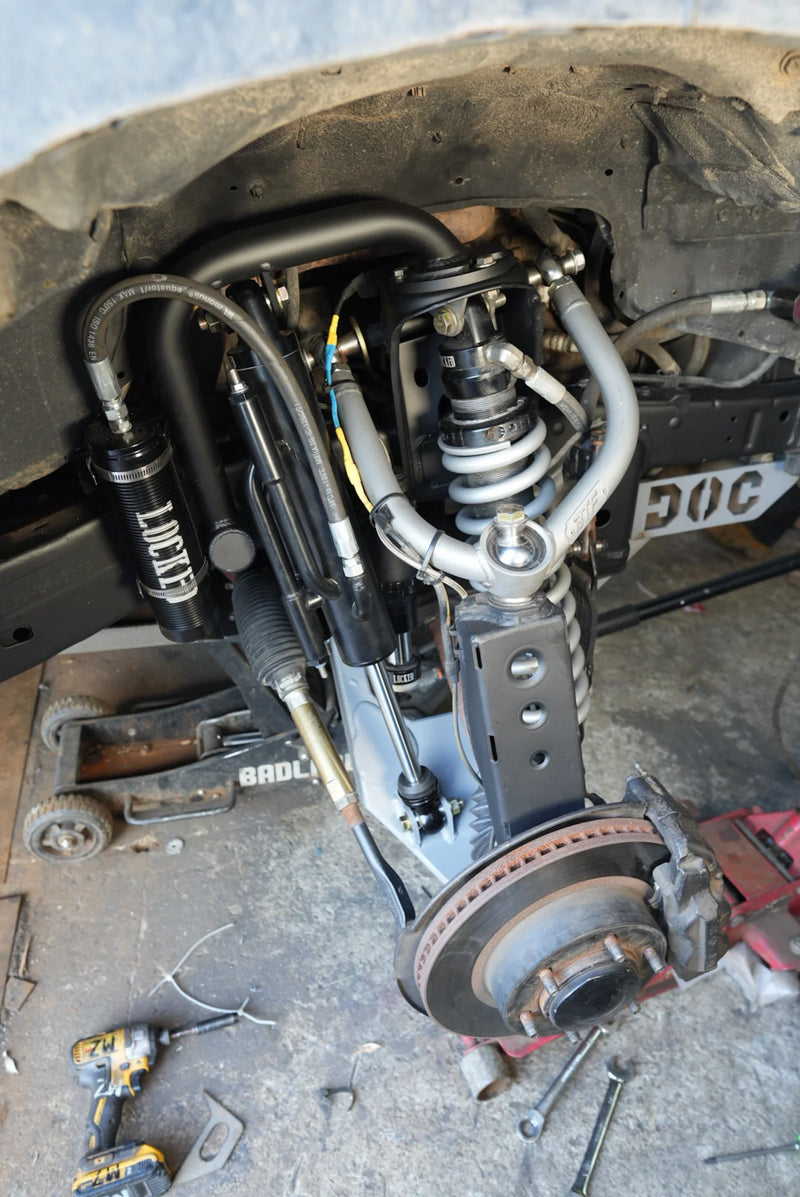

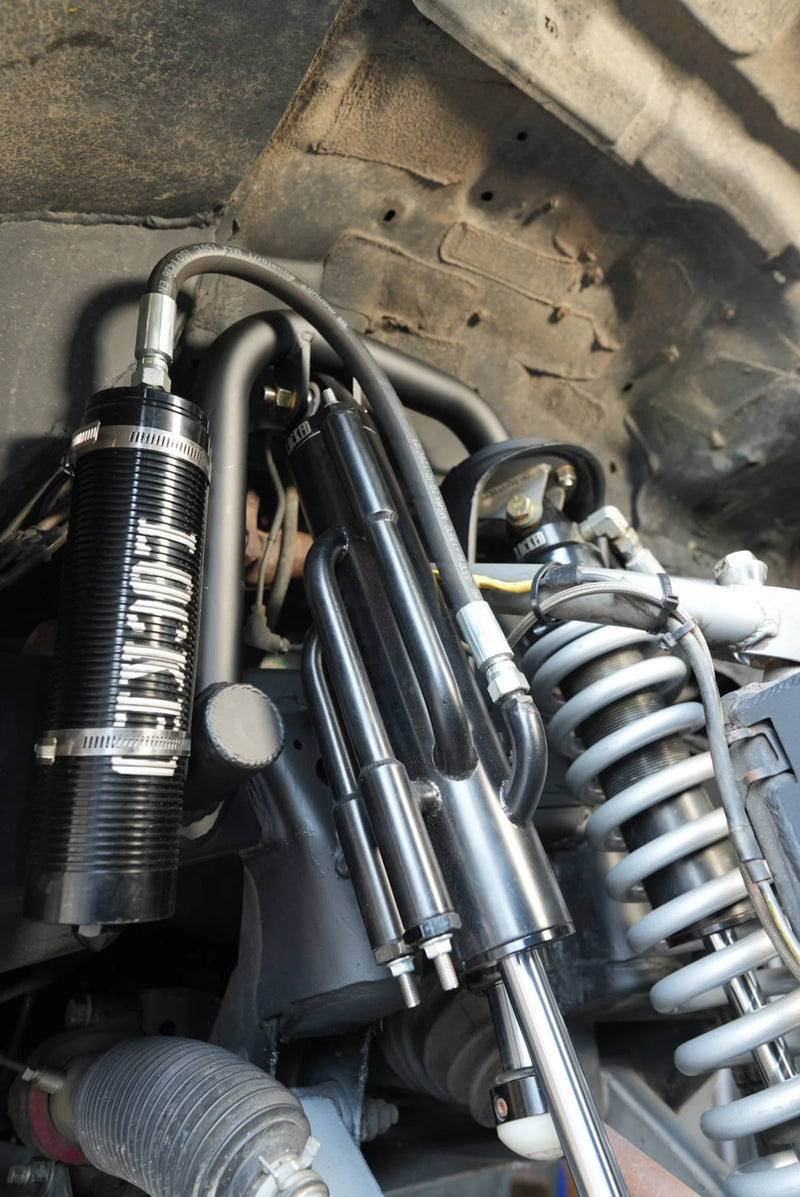

This shock hoop kit allows you to install a secondary 2.5" bypass or smooth body shock on your long travel equipped vehicle. This kit is specifically designed around BTF Fabrications long travel kits but may be used in other applications as well. Shock mounts are tacked together and the coil bucket reinforcement plate is fully TIG welded.

Add compatible bypass shocks by clicking HERE.

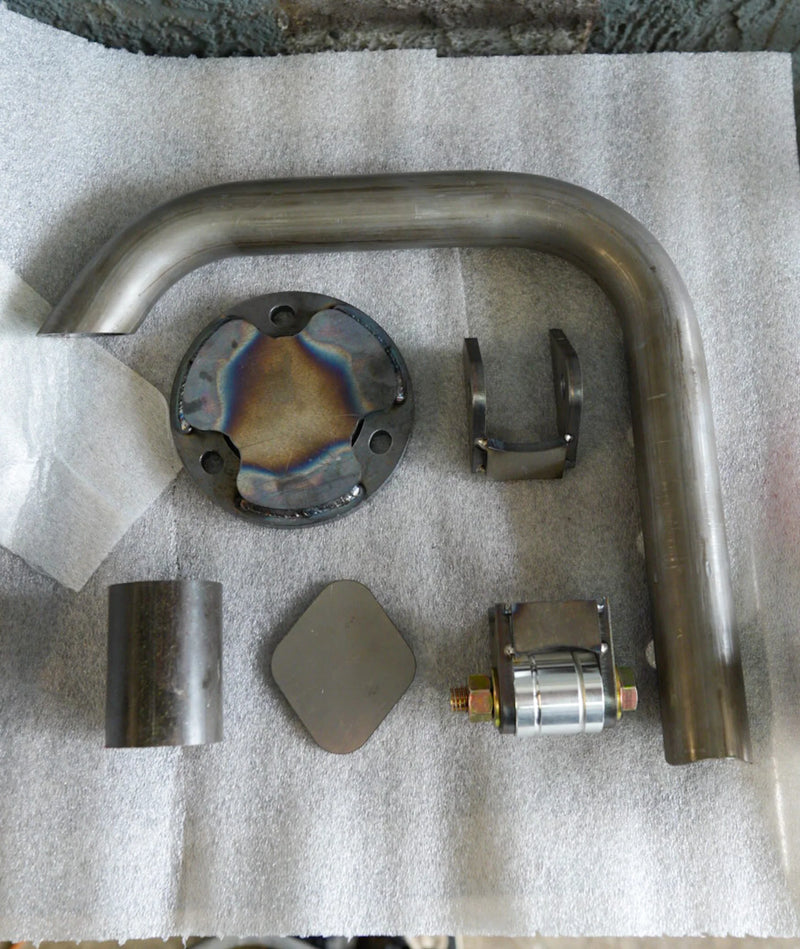

Kit includes parts for both sides of the vehicle:

• (2) Main shock hoops

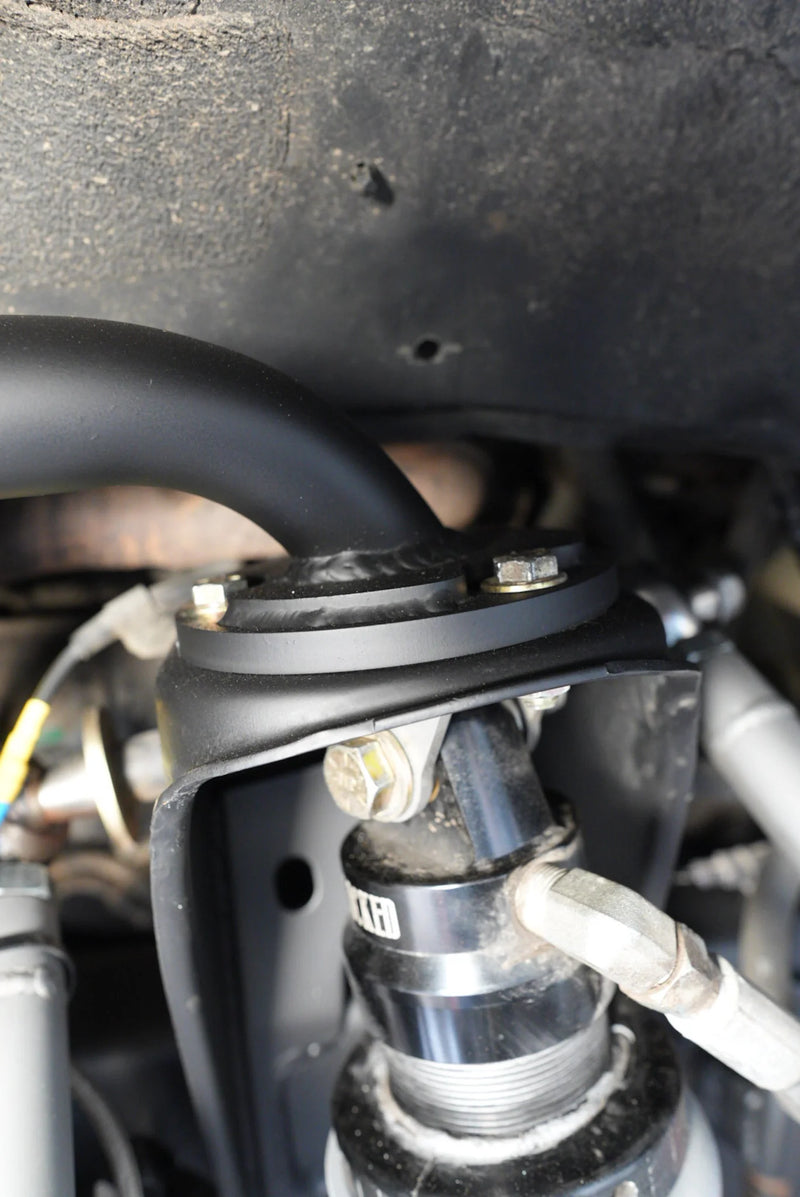

• (2) Fully TIG welded coil bucket reinforcement plate
• (2) Upper shock tabs w/ gusset (tacked together)

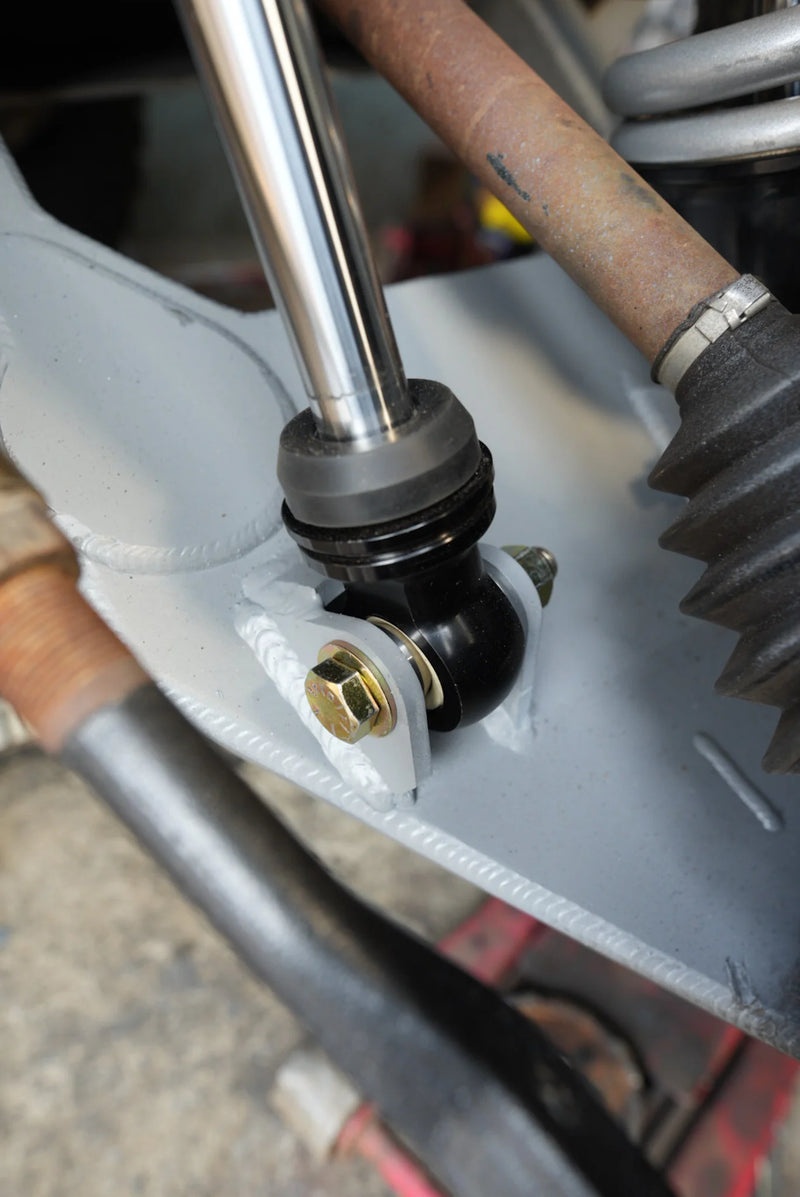

• (2) Lower shock tabs w/ gusset (tacked together - specific to BTF Long travel Kits)
• (2) Frame plate reinforcement
• (2) Lower support tubes
• (2) Tube end cap
• Grade 8 Hardware

Does NOT Include a shock welding spacer. Shock welding spacers can be acquired from TMR Customs and are optional for installation.

Vehicle Compatibility: 96-02 4runner and 95-04 Tacoma with BTF Fabrications Long Travel Kits

Will work with other kits as well (excluding lower shock mounts which are specifically designed for the BTF Kits)

Please watch our full instructional installation video.
