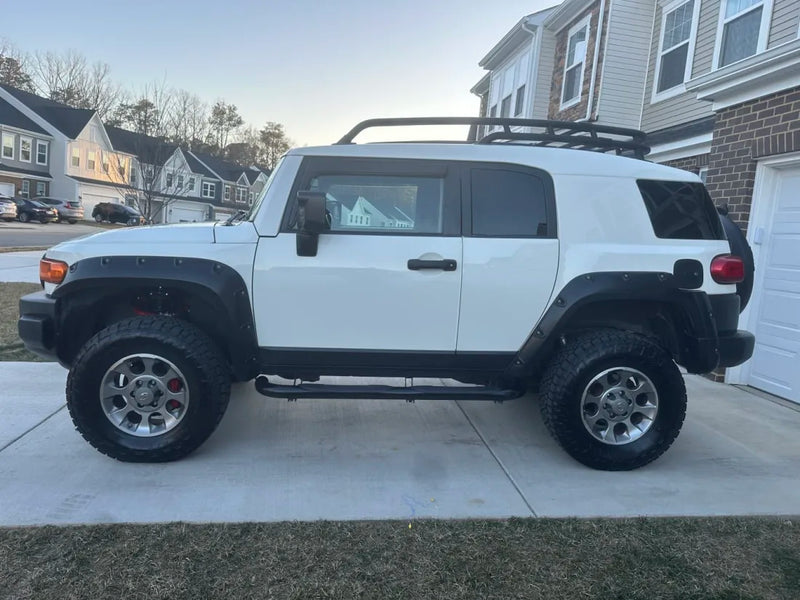

10-14 FJ Cruiser 5100/OME Lift Kit
Includes:
- Front and Rear OME Coil Springs
- Bilstein 5100 FJ Cruiser Adjustable Struts
- Bilstein 5100 FJ Cruiser Rear Shocks
Front Shocks:
- Bilstein 5100 FJ Cruiser Front Strut
Front coils:
- OME 884: 1.5" lift
- OME 885: 2.5" lift without weight, 2" with weight
- OME 887: 2.5" lift with weight
Rear coils:
- OME 895: 2" lift
- OME 889: 2.5-3" lift with weight (100-300lbs)
- OME 898: 3" lift without weight, 2-2.5" with weight (400lbs)
- OME 899: 2.5-3" lift with weight (440-880lbs)
Options:
- Assembled: Want a ready-to-install front strut? This is the option you need! Assembled with high-quality MasterPro and OEM quality stem bushings.
- Front Diff Drop Kit: Corrects 4WD CV angles by lowering your front differential (not required but recommended)
- Upper Control Arms: Replace that worn-out upper ball joint with a brand-new upper control arm and uni-ball design. We offer top brands in the industry!
- Panhard Correction Kit: Corrects your rear suspension geometry after lifting your 4Runner. Our favorite option by far!
- SRQ Swag Pack: This sweet pack includes decals, SRQ shirt, and an SRQ bottle opener!
Notes:
- Kits come unassembled unless an assembly option is selected. You can reuse your stock top hat and stem bushing/washers for installation on unassembled kits.
- All lift figures are based on lift averages, your exact setup may vary. We have no control over the total height the lift achieves on your specific vehicle
- 2WD lift heights may vary from estimated heights as the front end is lighter
- Lift estimates are based on the front struts being set on the lowest perch. Raising the perch level on the front struts to gain more lift may cause damage to the struts as the springs are lifting springs. You are responsible for any damage to the strut that may occur. Any manufacturer warranties are voided when going above the lowest perch while utilizing OME lifting springs.
