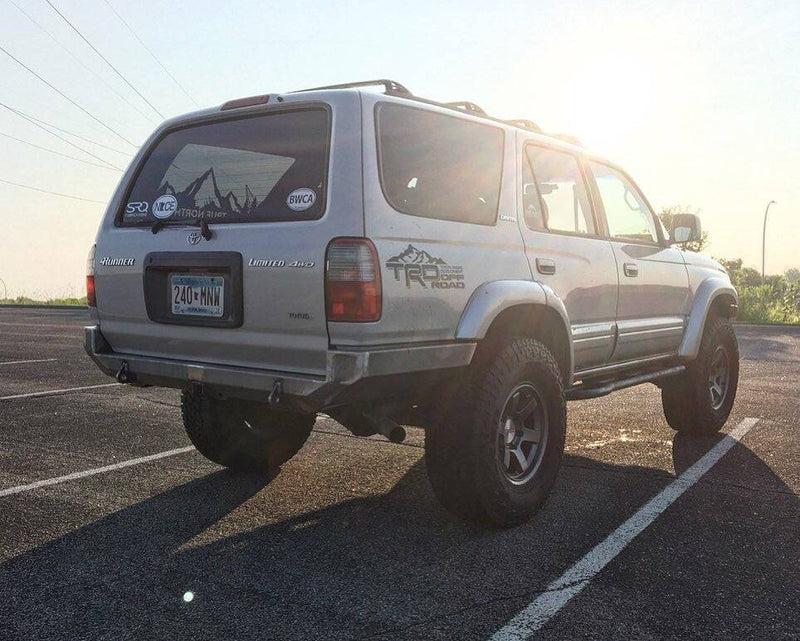

96-02 3rd Gen 4Runner Rear Plate Bumper - Welded

This product has a build time—view details.

Info to know before you order:

• THIS IS A WELDED BUMPER!

• There may be small imperfections on the surfaces of the parts, such as small areas of surface rust or shallow scratches caused during the manufacturing or shipping processes.

• The bumper is intended for off-road use only. There is no tow capacity rating.

A little about the bumper:

• We wanted to be able to offer the best fitment possible so we took our design a step above all the other fabrication companies out there and had the front of the truck laser-scanned! This allows us to model the bumper within our cad programs using a virtual representation of the truck that is accurate to within .005 inches!

• Materials: The frame mounting brackets are 1/4" hrpo steel. The center section, swingout attachment plates, and side support braces are 3/16" hrpo steel. Sides and end caps are 10 gauge (0.1345") hrpo steel. Shackle mounts are 1/2" hr steel with a 1" hole and are welded through to the frame brackets. Crossbeams between frame bracket and hitch are 2x2x3/16 square tubing. Hitch is 2.5x2.5x3/16 square tubing.

• We realized that these bumpers are going to be mounted on 20ish-year-old vehicles and the chances of each and every one of them having a perfect frame with no previous damage is slim. So in order to offer the best fitment possible, we made all the mounting points slightly oversized. This will give you a little adjustability when mounting. Depending on how far you need to adjust you will possibly need to use washers as shims between the bumper and the frame. New bolts and washers are included.

• Works with stock height/suspension lifted vehicles as well as 1/2", 1", 1.5", and 2" body lifts!

• The base bumper weighs roughly 95 lbs.

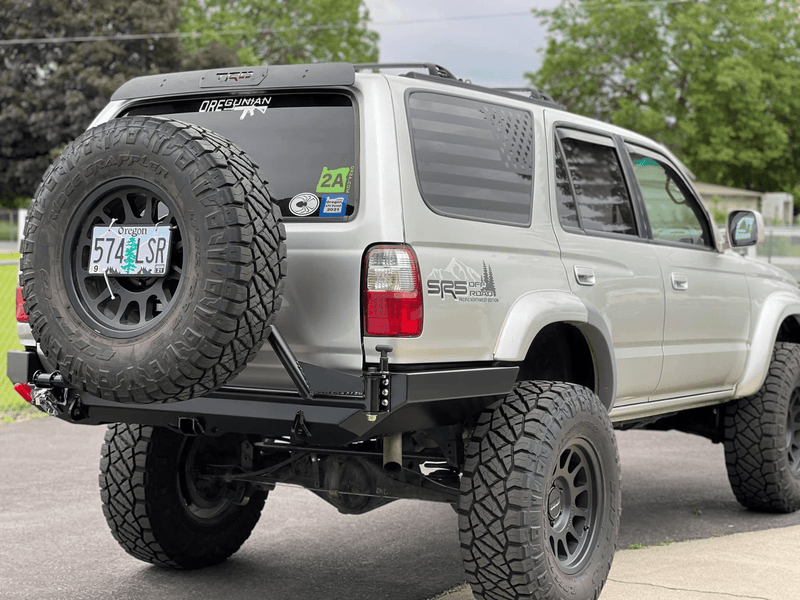

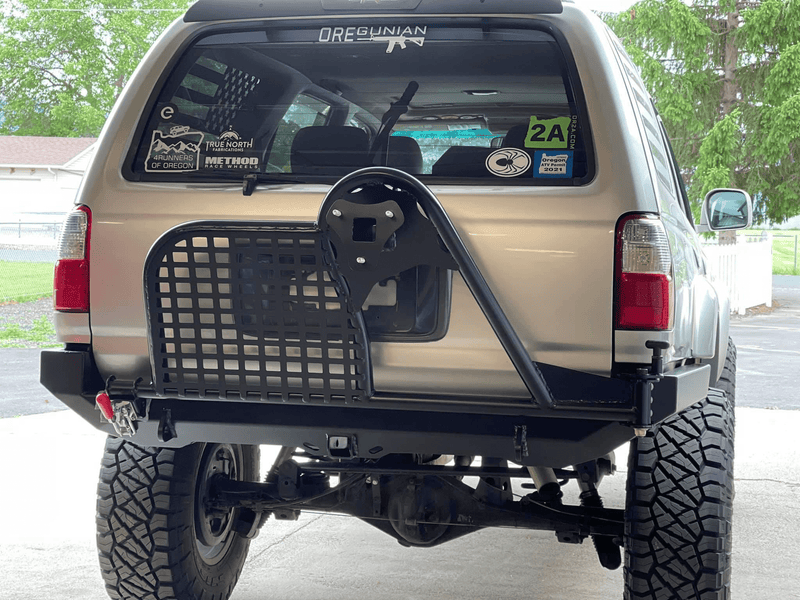

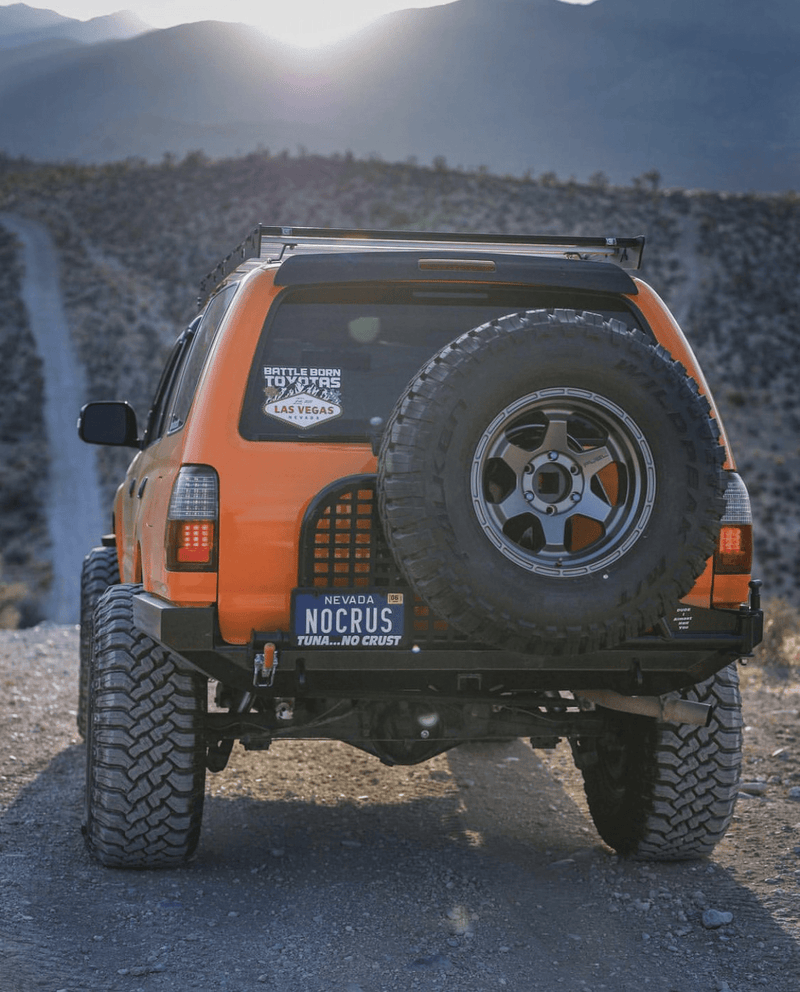

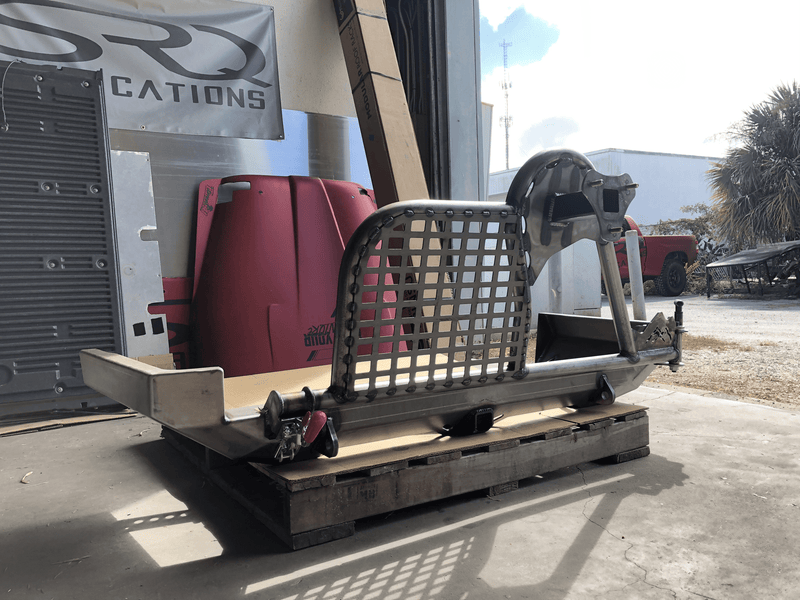

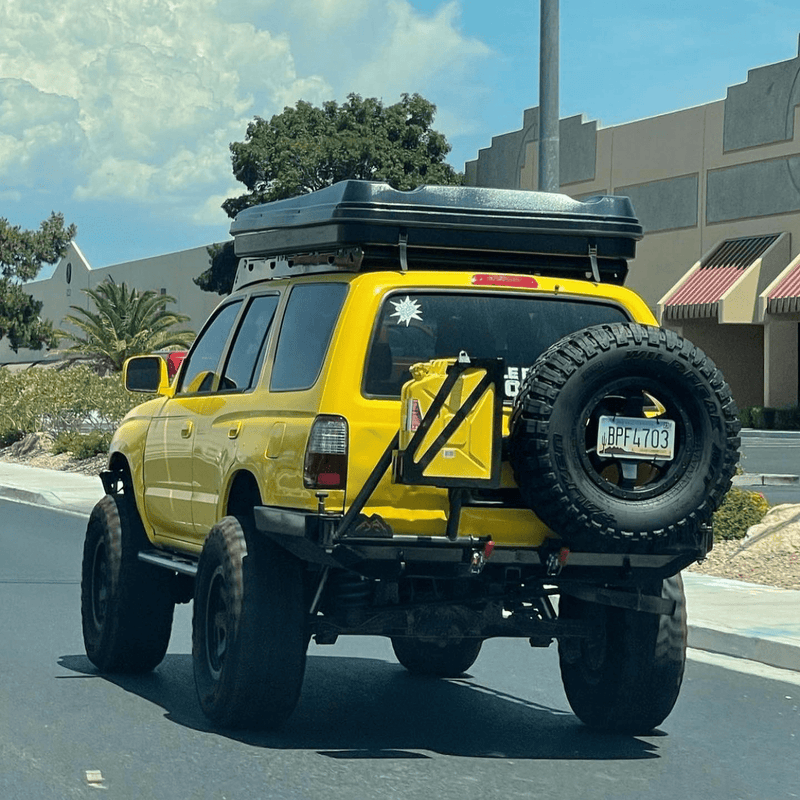

A little about the swingout:

• Max recommended tire size is 35".

• Wheel bolt pattern is 6x5.5 with M12x1.50 studs. Lug nuts not included.

• The license plate will need to be relocated.

• Materials: The hinge brackets, wheel mounting plate, and swingout wheel support plate & braces are 1/4" hrpo steel. The latch bracket and logo brace are 3/16" hrpo steel. Round tubing is 1.75" OD x 11 gauge ERW. Square tubing is 2.5x2.5x3/16.

• Hinge is a dual shear design. Main pin is a 3/4" alloy steel shoulder bolt (stronger than grade 8). Uses oil embedded high load flanged sleeve bushings. The outer tube that the swingout welds too is 1.75" OD x 3/8" wall DOM tubing. Mounts to the bumper using six 1/2" alloy steel bolts.

• Latch has a 2000 lb holding capacity and safety lock.

• T-handle spring plunger offers added security and locks swingout in the closed position. Also, locks swing out when opened to 100°.
• Swingout weight including latch, hinges, and all hardware is around 40 lbs.

Powder Coat: We recommend having your bumper powder coated locally once you receive it. Although we love providing you with a beautifully powder-coated bumper, there is a risk of it getting damaged during shipping. We do our best to package the bumper as well as we can, but somehow there are still instances when damage occurs during shipping. Therefore, we will continue to offer powder coating, but we can no longer cover any damages incurred during shipping.
