2003-2009 4th Gen 4Runner Adjustable Rear Links

Upgrade your vehicle’s rear suspension with the TOTAL CHAOS Adjustable Rear Link System, engineered for durability, adjustability, and off-road performance. This bolt-on system improves articulation, adds 1.5" of droop wheel travel with longer shocks, and provides precise adjustability to optimize your suspension setup.

Constructed from 1 1/4" .375 wall 4130 chromoly tubing, the rear links are designed for maximum strength. The panhard bar and upper and lower links incorporate heims on non-axle sides, making the system fully adjustable. Urethane pivot bushings reduce deflection for a tighter feel, while zerk fittings allow for easy maintenance.

Key Features:

• 100% bolt-on installation
• +1.5" droop wheel travel with longer shocks installed
• Fully adjustable panhard bar with 3/4" heims on both ends
• Upper and lower links with 7/8" heims for precise adjustments
• 1 1/4" .375 wall 4130 chromoly tubing for maximum durability
• Urethane bushings and zerk fittings for reduced deflection and easy maintenance
• Hi-misalignment spacers and hardware included

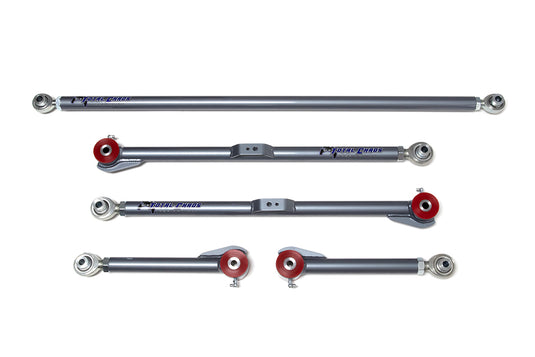

Kit Includes:

• Upper Link (Qty: 2)
• Lower Link (Qty: 2)
• Panhard Bar (Qty: 1)
• Jam Nuts: 7/8"-14 RHT (Qty: 4), 3/4"-16 RHT (Qty: 2)
• 8mm-1.25 Flange Head Nuts (Qty: 2)
• Heim Spacers: Upper Link (Qty: 4), Lower Link (Qty: 4), Panhard Bar (Qty: 4)
• Inner Sleeves: Large Hole (Qty: 2), Small Hole (Qty: 2)
• Universal Bushings, Half (Qty: 8)
• Zerk Fittings, 1/4"-28 90 Degree (Qty: 4)
• RHT 7/8" x 7/8" Heim (Qty: 4)
• RHT 3/4" x 3/4" Heim (Qty: 2)

Notes:

• Ships pre-set to factory length but can be adjusted for custom setups
