Upgrade your vehicle’s suspension with the TOTAL CHAOS Dual Shock Hoop Kit and KING 2.5" Front Bypass Shocks, designed for maximum dampening control and custom tunability. This kit allows the installation of secondary shocks to enhance suspension performance in the most demanding off-road conditions.
The 4130 pre-bent chromoly shock hoops reinforce the factory coil bucket while maintaining a low-profile design to prevent contact with the inner fender well. The flush mount top plate supports shocks with either bolt or stud-style upper mounts, eliminating the need for trimming the inner fender well. Upper shock tabs are pre-tacked to simplify setup but require welding for final installation.
Note: All dual shock lower control arms require a 1.25" wheel spacer to prevent the tire from contacting the second shock mount at full steering lock, even if a secondary shock is not installed.
Key Features:
- 4130 pre-bent chromoly shock hoops for durability and reinforcement
- Compatible with TC custom length secondary 2.5" bypass shocks
- Low-profile design prevents interference with the inner fender well
- Flush mount top plate accommodates bolt or stud-style upper mounts
- Pre-tacked upper shock tabs for easier setup (welding required)
- Grade 8 hardware included for secure installation
- Specifically designed for TOTAL CHAOS lower control arms with dual shock tabs
- Requires 1.25" wheel spacer to prevent tire-to-shock mount interference

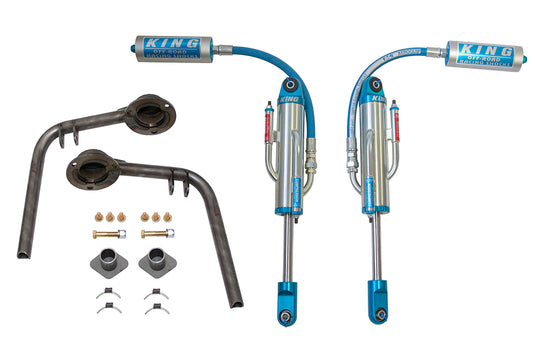

Kit Contents:
- (1) TOTAL CHAOS Dual Shock Hoop Kit (PN: 86610)
- (1) Pair of KING 2.5" Front Bypass Shocks (PN: KNG-TC1119-25)
